"JOHNFORD" CNC LATHE MODEL TC-35


 Specifications:

 Manufacturer:                Johnford
 Mfr. #:                            455142
 Year:                              1998
 Swing Over Bed:            20"
 Swing Over cross.:         14"
 Between Centres:           31.9"
 Spindle Bore:                  3.38"
 Spindle motor:                20 HP.
 Spindle speed:                30-3500 rpm.
 Normal machining dia.:   13.7"
 Chuck size:                      10" (12" OPT)
 Bar capacity:                   2.95"
 Bed inclination:               45 deg.
 Turret (no of tools):       12
 Physical dim.:                 164.5" L x 79.9" W x 92.5" H
 Weight:                           16,500 lbs.

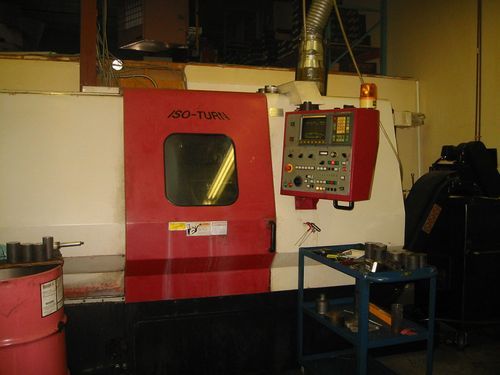

 Picture 2

 More specifications available.

 Price, ex-location:.  .  .  .  .  .  . Call
