Stock No:                          9118

Specifications:

Manufacturer:                Monarch Lathe Company  (USA)
Mfr. #:                             43109
Year:                               1957, December
Swing Over Bed:            34.6"
Between Centres:          120"
Spindle Bore:                  2.5"
Speed Range:                 10 - 505 RPM
Threads:                         3/4" - 46 TPI, (incl. 11½)
Thread Counter:            Yes
Feed Rates:                    .0038" - .240"
Chucks:                           3- jaw
Carriages:                       (one with no cross-slide)
Taper Attachment:         via Tracer attachment
Coolant:                           yes
Lead Screw:                    yes
Toolpost:                         4-way, 7" x 7" Square
Lathe Bed:                      Flame Hardened
Horsepower:                   25 HP
Voltage:                           550 V.
Weight:                            18,000 lbs
Dimensions:                     20' Long x 6" Front - Back

ATTACHMENTS:

           *     15-3/4" 3-Jaw Chuck, "Rohm"(German)
           *     Hydraulic Tracer Compound Slide
           *     Full length threading,
           *     10" Diameter Cylinder Pneumatic Tailstock

Comments:

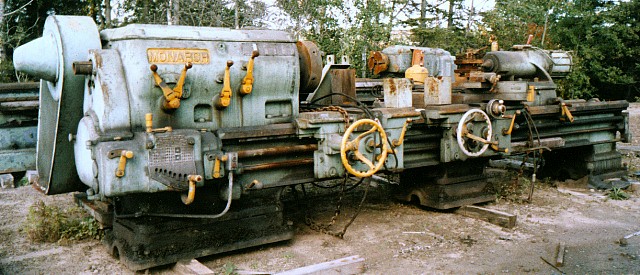

          This heavy-duty, top quality American-built machine has been
          retro-fitted with the hydraulic tracer attachment, making
          it extra versatile.  Heavy duty oversized bearings, headstock,
          carriage etc.


Location: New Glasgow, Nova Scotia, We can arrange loading
Price:  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  $15,000.00 USD
                                                                                            or $24,000.00 CAD
